杰仕誠機械制造有限公司Jieshicheng machinery manufacturing co., ltd

0757-27738837

產品展示-PRODUCTS

產品類別

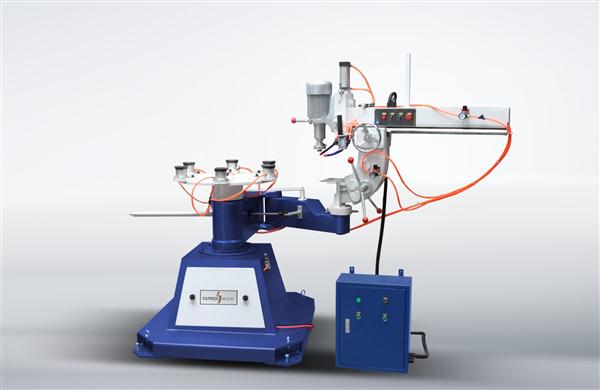

YXM120A 玻璃內外圓磨邊機

主要特點  The Main Features

●轉盤間隙可調節 Clearance of rotating plate can be adjusted

●轉盤的轉速無級調速 Rotating speed is adjusted by variable motor

●可對圓形、橢圓形及異形玻璃進行圓邊、鴨咀邊、方邊及斜邊的加工

   Can process round shape, oval shape and other irregular shape of glass to round edge, OG edge, square edge and beveling edge

●可以磨削內圓、內橢圓及各種異形內腔

Can grind inner circle, inner oval and various special-shaped lumens

主要技術參數  The Main Technical Parameters

型號

Model

YXM120

最小尺寸

Min. Glass Size

100mm

最大尺寸

Max. Glass Size

2100mm

玻璃厚度

Glass Thickness

3-21mm

最大斜面寬度

Max. Bevel Width

35mm

斜面角度

Bevel Angle

0-20

功率

Power

2.6kW

重量

Weight

1100kg

占地面積

External Dimensions

¢3000*1700mm
